9" x 12" Standard Trim Tab Kit 12V Electric Trim Tabs for Boats Size 16ft to 25ft with Double Rocker Switches #15101-104

Product Description

【Functions】

• Power Supply: Receives commands from a control switch, and an internal motor drives a hydraulic pump, converting electrical energy into hydraulic energy, which in turn pushes a piston rod for linear extension and retraction.
• Heave flap Angle Control: The piston rod is directly connected to the heave flap. Extending the piston rod deflects the heave flap downward; retracting the piston rod raises the heave flap to a position flush with the ship's bottom or retracts it upward.
• Vessel Attitude Adjustment: By controlling the different angles of the port and starboard heave flaps, this compensates for uneven weight distribution or the effects of unilateral wind and waves, ultimately achieving the following:

1. Balancing the Hull: Eliminating left and right tilting.

2. Optimizing the Attitude: Reducing bow pitch keeps the hull level or in an optimal planing position, reducing drag.

3. Improving Efficiency: By reducing drag and optimizing the hull's contact surface with the water, the system improves fuel economy, increases speed, and enhances stability.

【Part Number & Applicable】

15101-104

The trim tabs kit for boats Length 16’-25’

【 Wide Applicability】

Suitable for 16- to 25-foot vessels:

This size range indicates that the thrust provided by this actuator (typically around 100 lbs., approximately 45 kg) is well-suited for small and medium-sized fishing boats, pontoon boats, skiffs, and sport boats. It provides sufficient and precise control force for vessels in this size range.

【Key Features】

• Instant Response: Response is extremely fast, occurring almost instantly upon pressing the control switch. No complex piping or separate hydraulic pump is required.
• Overheat Protection: Actuators typically have an integrated thermal switch. If the motor overheats due to prolonged continuous operation (such as attempting to forcefully adjust the boat's attitude at high speed), the actuator automatically shuts off power temporarily, recovering after cooling to prevent burnout.
• Low Power Consumption: Energy is consumed only during adjustment; zero power consumption when not in use. This is a significant advantage for marine batteries, where power is scarce.

【Easy Installation & Maintenance】

• Plug-and-Play Design: The actuator comes as a sealed assembly that simply bolts to a pre-installed bracket on the hull, connects the trim plate, and then connects the power and control cables.
• Simplified System: Eliminating the central hydraulic pump, oil tank, and long hydraulic lines significantly simplifies installation and reduces potential leak points.

❣️Notice

Please check the part number / model / make / year carefully before purchasing to insure fitment. Any question, feel free to contact us at any time.

📦Package Include

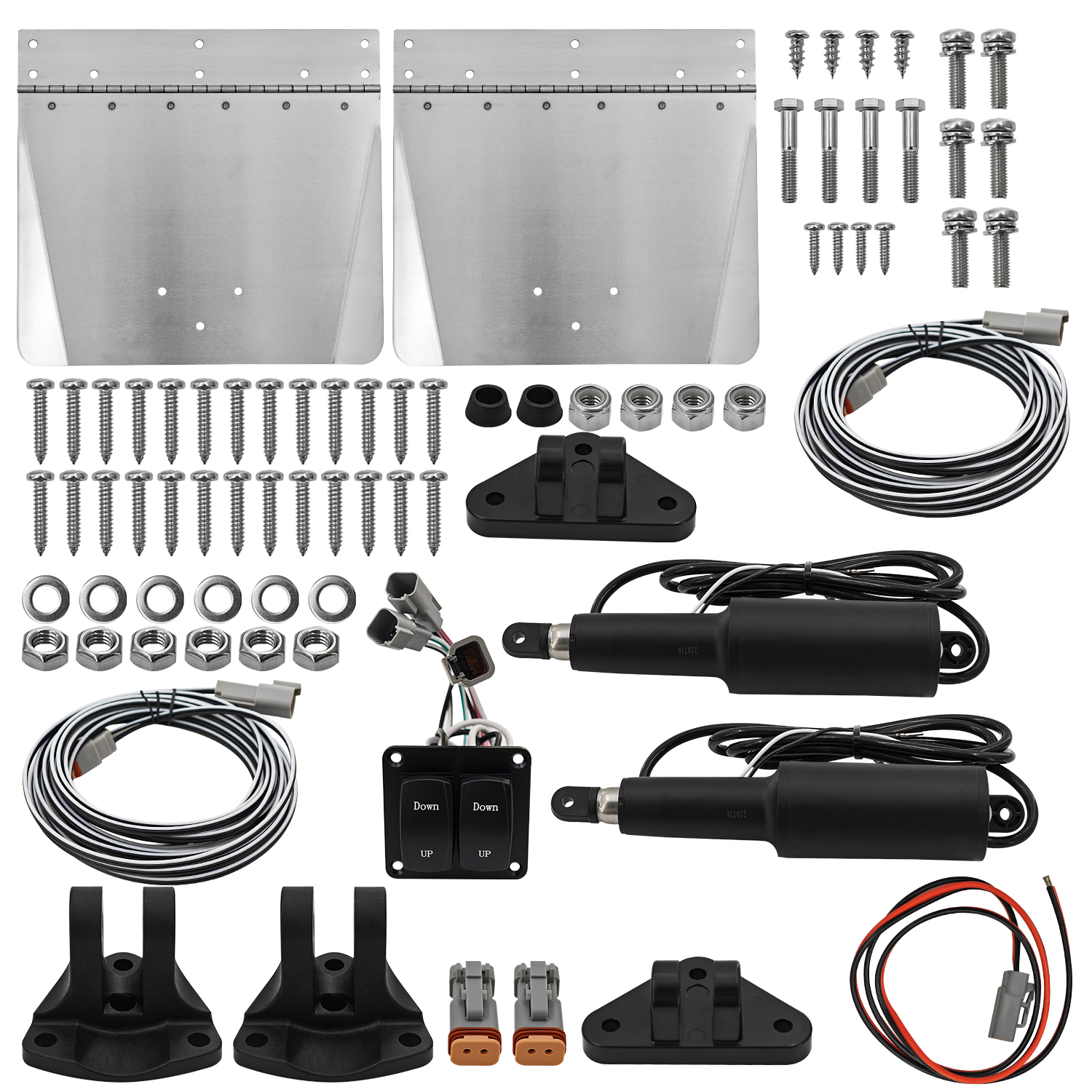

 Dimensions: 9" L x 12" W, minimum beam height 14".

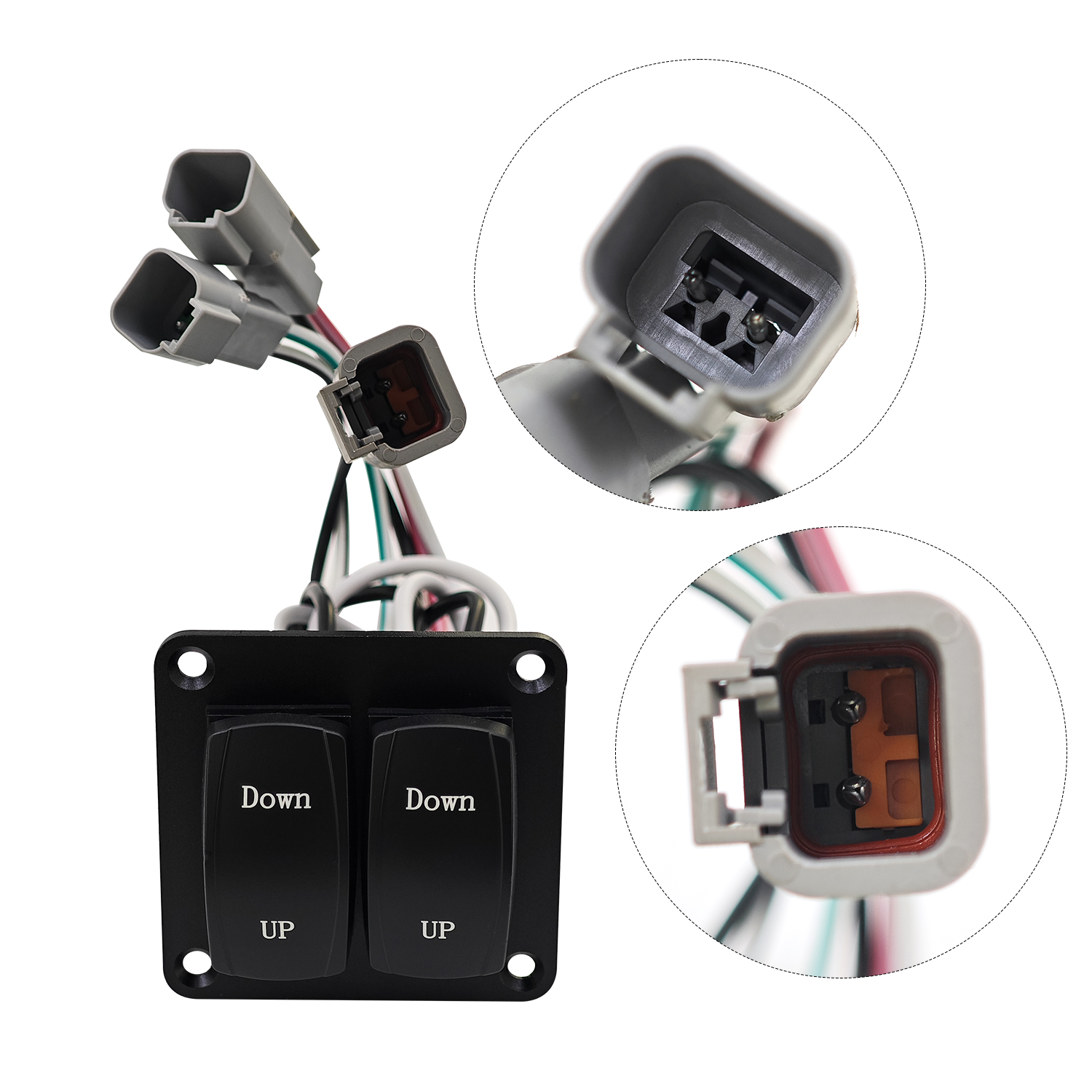

(1) Switch Kit - Select dual rocker, new standard integration.
(2) Blades are 12 gauge stainless steel with a 5/8 inch flared trailing edge.
(3) Supplied with two 12 volt actuators with leads and connectors, the leads are 6 feet long.

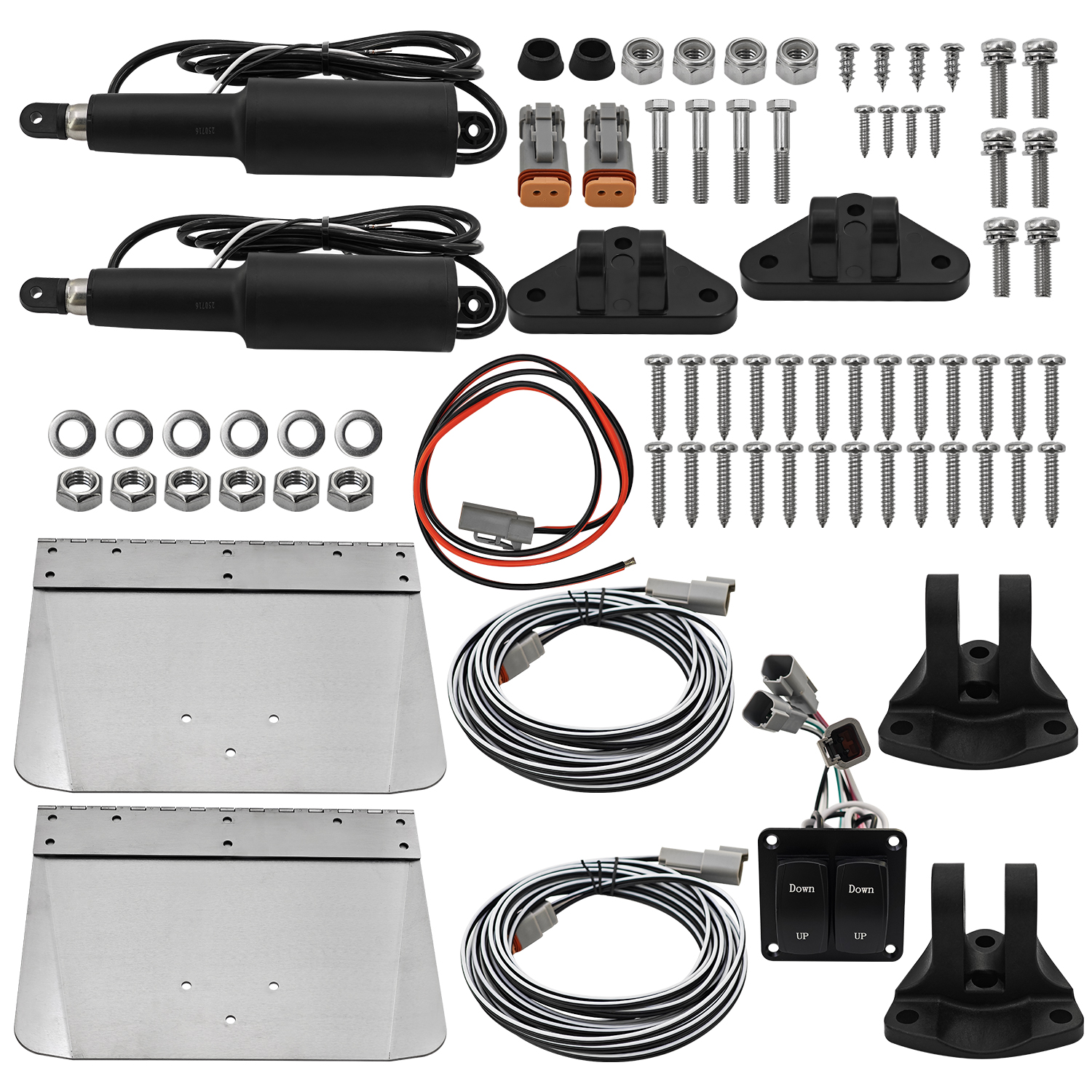

(4) Supplied with two 20 foot actuator extension harnesses with waterproof plug and play Deutsch connectors.
